Functional Precoated

High-Performance Coated Aluminum Sheets UACJ COAT

  • twitter
  • facebook

UACJ COAT for Highly Functional Aluminum Sheet

Lightweight and corrosion resistant, electrically conductive and recyclable, this aluminum has numerous superior properties. For UACJ COAT, a functional coat is applied to aluminum on a state-of-the-art coating line for a varied lineup that can be used for products requiring such characteristics as high heat radiation, conductivity, reflectiveness, formability and scratch resistance. This highly functional aluminum coating material contributes to functionality, design and cost reduction.

High-Performance coated aluminum materials UACJ COAT
  • UACJ COAT HEAT SOLUTION
  • UACJ COAT SUPER WHITE
  • UACJ COAT HIGH FORM
  • UACJ COAT SCRATCH GUARD
  • UACJ COAT LUB-EARTH
  • UACJ COAT CLEAN
  • UACJ COAT OIL GUARD
  • UACJ COAT ART DESIGN

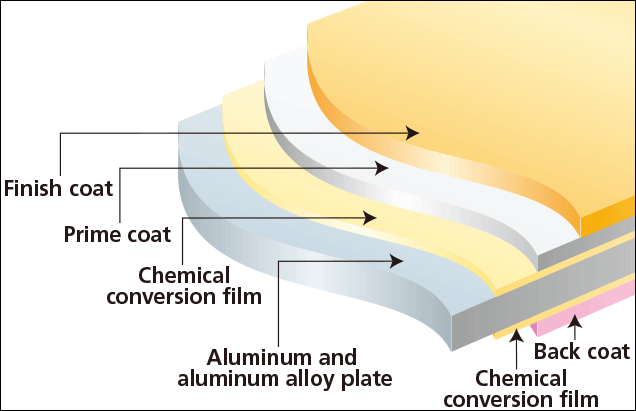

Features/Structure

Achieve light weight labor savings

The base material is a lightweight aluminum alloy that is precoated, so no coating is necessary. Contributes to lightweight products and labor-saving manufacture.

Extends product life

Two coats of high-quality coating are twice-baked to achieve superlative corrosion resistance and rigidity. Contributes to longer product life.

Expanded processing design width

Advanced surface treatment technology achieves excellent general-purpose properties. Meets diverse forming needs to enhance design flexibility.

Extensive variations

Polyester, acrylic, fluorine and various other coatings can be baked on to a range of aluminum alloys. A host of colors are also available.

Manufacture Ranges of Coating Line

Base material Aluminum and aluminum alloy plate
Plate Thickness 0.12 mm–2.0 mm
Plate Width 630 mm–1,250 mm
Weight 2 tons–4.5 tons

* Please check with us for the manufacturing feasibility of products with plate thicknesses in the upper and lower limits, and for specific product sizes.

Lineup

HEAT SOLUTION

Picture of HEAT SOLUTION

Features:
Highly heat-radiative
Uses:
Server cabinets, etc.

SUPER WHITE

Picture of SUPER WHITE

Features:
Highly reflective
Uses:
Eco-illumination reflective plates, etc.

HIGH FORM

Picture of HIGH FORM

Features:
High formability
Uses:
Capacitors, various containers, etc.

SCRATCH GUARD

Picture of SCRATCH GUARD

Features:
Scratch resistant
Uses:
PC drive components, etc.

LUB-EARTH Series

Picture of LUB-EARTH

Features:
Highly electrically conductive, lubricating
Uses:
PC drive components, etc.

CLEAN Series

Picture of High antifouling capability

Features:
Highly stain-resistant
Uses:
Bathroom ceilings, signboards, etc.

OIL GUARD

Picture of OIL GUARD

Features:
Water-repellant
Uses:
Range hoods, filters, etc.

ART DESIGN

Picture of ART DESIGN

Features:
Sophisticated design
Uses:
Construction materials, housing interiors and exteriors, etc.
