High performance coated aluminum materials FUSCOAT Series
The concept of aluminum plus added value

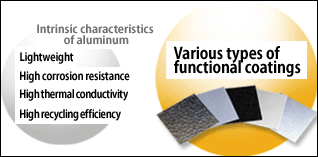

“Aluminum” is a material which possesses superior characteristics such as being lightweight, high corrosion resistance, a high thermal conductivity, and high recycling efficiency. FUSCOAT is a functional coated aluminum material, which allows various kinds of functional films to be coated on the surface of an aluminum material. The coil coating process of FUSCOAT provides excellent stable quality and contributes to the reduction of the total cost of processed products.
The FUSCOAT series lines up variety of products featuring added properties such as heat dissipation capability, reflectivity, formability, scratch resistance for optical discs, and electrical conductivity.
These products are beneficial in product development, quality enhancement, cost reduction, and much more.
- High performance coated aluminum materials FUSCOAT Series
Features/structure
What is FUSCOAT?

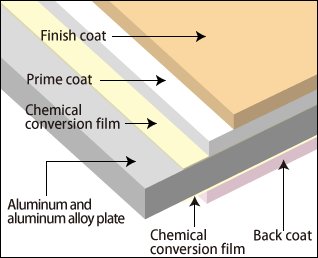

- FUSCOAT is an aluminum material in which allows for various kinds of functional films to be coated on the surface. The combination of those coated films with the inherent characteristics of aluminum (lightweight, high corrosion resistance, high thermal conductivity, and high recycling efficiency) provides a wide variety of products to meet your needs.
- We are the only company in Japan with a coil coating line dedicated to production, and we ensure stability in the production of high quality products.
- FUSCOAT high-value added aluminum products are widely used in a range of industries in Japan and overseas.
- UACJ manufactures FUSCOAT products from raw material to coated products, and has established a comprehensive quality system.
Manufacture ranges of coating line
| Base material | Aluminum and aluminum alloy plate |
|---|---|
| Plate Thickness | 0.12 mm–2.0 mm |
| Plate Width | 630 mm–1,250 mm |
| Weight | 2 tons–4.5 tons |
* Please check with us for the manufacturing feasibility of products with plate thicknesses in the upper and lower limits, and for specific product sizes.
Lineup
HS
- Features:
- High heat dissipation
- Uses:
- Server case, etc.
High Form
- Features:
- High formability
- Uses:
- Capacitors, containers for various purposes, etc.
Art Series “Nazca”
- Features:
- Aesthetic design
- Uses:
- Exterior finishes, roofing materials, etc.
Scratch Guard
- Features:
- Scratch resistance for optical discs
- Uses:
- Parts for PC drives, etc.
Art Series “Beads”
- Features:
- Aesthetic design
- Uses:
- Construction materials, interior and exterior finishes, etc.
Clean Series
- Features:
- High antifouling capability
- Uses:
- Bathroom ceilings, signboards, etc.
LUB-EARTH Series
- Features:
- High electric conductivity and lubricity
- Uses:
- Parts for PC drives, etc.
