High scratch resistance coated aluminum material

UACJ COAT™ Scratch Guard Color name: Scratch Guard Clear 2AR

Pre-coated aluminum material with excellent lubrication, workability and chemical resistance. Ideal for products requiring optical disc scratch resistance.

Features

  1. UACJ COAT™ Scratch Guard is ideal for products where resistance to scratches on optical discs is required.
    UACJ COAT™ Scratch Guard reduces the area of contact with the disc so that it becomes more scratchproof when the disc slides.
  2. UACJ COAT™ Scratch Guard has high lubricity and excellent formability.
  3. UACJ COAT™ Scratch Guard is resistant to scratches during handling, and is expected to enhance yields in comparison to uncoated materials or conversion coated materials.
  4. UACJ COAT™ Scratch Guard has excellent chemical resistance, which provides a wider range when selecting a cleaning agent.
  5. UACJ COAT™ Scratch Guard is also fingerprint resistant, which allows you to omit the process of wiping off fingerprint marks.

Differentiated Technology

  • High scratch resistance coating mixing technology
  • Uniform coating technology

Uses

  • Parts for PC drives
  • Cases for instruments
  • Electronics and electrical parts
Picture of Audio devices
Audio devices
Picture of Slot-in drive cases
Slot-in drive cases

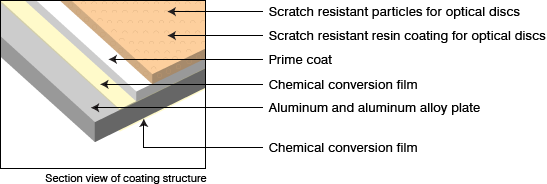

Structure

Fig. Structure

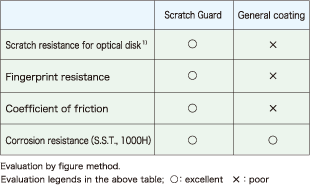

Performance

Fig. Performance

Outline figure (Surface)

* The values are test data and are not guaranteed values.
