High heat radiating, coated aluminum material

UACJ COAT™ HS Color name: HS high black GPAR

Pre-coated aluminum sheet with functional film featuring high heat-radiation property.

Features

  1. UACJ COAT™ HS is ideal for products which require a high levels of heat radiation.
  2. UACJ COAT™ HS has emissivity equivalent to or higher than that of a black anodized material, with the highest levels of heat radiation among resin-coating materials. The aluminum alloy has high heat conductivity, which is advantageous for heat diffusion.
  3. UACJ COAT™ HS has high lubricity and excellent formability.
  4. UACJ COAT™ HS is resistant to scratches during handling, and is expected to enhance yields in comparison to uncoated materials or conversion treated materials.
  5. UACJ COAT™ HS has excellent chemical resistance, which provides a wider range when selecting a cleaning agent.

Differentiated Technology

  • High heat radiating coating mixing technology
  • Uniform coating technology

Uses

  • Server cases
  • Radiator plates for floor panel heating
  • Back cover for a large LCD
  • Cases that require heat radiation such as a heat radiating board for an IC substrate
Picture of Server case
Server case
Picture of Radiator plates for floor panel heating
Radiator plates for floor panel heating
Picture of PDP back cover
PDP back cover

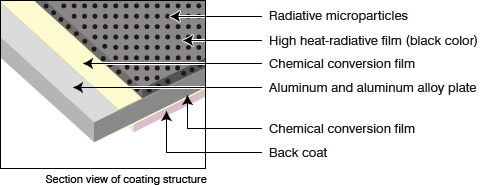

Structure

Fig. Structure

Performance

1. High heat radiation

Graph of High heat radiation

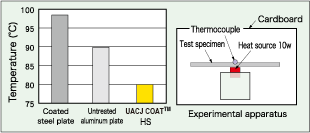

2. Assessment of heat radiation properties

Fig. Assessment of heat radiation properties

* The values are test data and are not guaranteed values.
