High conductivity, lubricating coated aluminum material

UACJ COAT™ LUB-EARTH Series Color names: Dojun 007 and FC47

Pre-coated aluminum material featuring high conductivity and lubrication that can be used in applications requiring grounding properties.

Features

  1. UACJ COAT™ LUB-EARTH is ideal for electrically conductive products where grounding is necessary.
  2. UACJ COAT™ LUB-EARTH has high lubricity and excellent formability.
  3. UACJ COAT™ LUB-EARTH is resistant to scratches during handling, and is expected to enhance yields in comparison to uncoated materials or conversion coated materials.
  4. UACJ COAT™ LUB-EARTH has excellent chemical resistance, which provides a wider range when selecting a cleaning agent.
  5. UACJ COAT™ LUB-EARTH is also fingerprint resistant, which allows you to omit the process of wiping off fingerprint marks.
  6. UACJ COAT™ LUB-EARTH has a range of products to provide you with a wide selection to meet your performance requirements.

Differentiated Technology

  • High electric conductivity, lubricity coating mixing technology
  • Uniform coating technology

Uses

  • PC drive case
  • Cases for instruments
  • Electronics and electrical parts
Picture of Server case
Server case
Picture of System rack for industrial computers
System rack for industrial computers
Picture of Slot-in drive case
Slot-in drive case

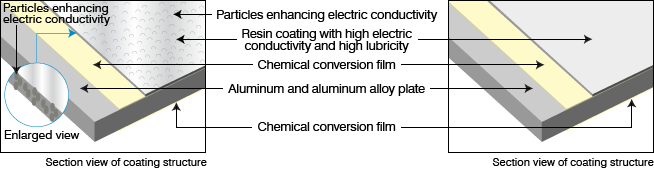

Structure

Material enhancing electric conductivity is added: Dojun 007, Material without an additive enhancing electric conductivity: FC47

Fig. Structure

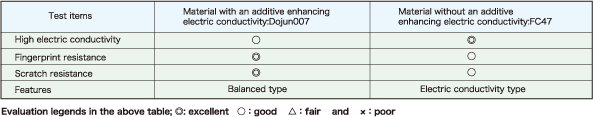

Performance

Fig. Performance
