Forged Products
Aluminum Forged Products for Aerospace Applications
Share
Used in Spacecraft and Aircraft Parts, from Small to Large
Our forged parts for spacecraft and aircraft benefit from our long years of aircraft technology development. Our sophisticated technologies and leading-edge R&D capabilities support our global leadership, backed by some of the largest and most advanced production facilities available, in technological innovation in the aerospace field.
Features
- 15,000-ton forging press handles items weighing up to 6,000 kg.
- Precision forging (gradient of 0° on the exterior wall) minimizes the amount of machining required after forging.
- Our fully-integrated manufacturing system—from ingots to forging, heat treatment, finish processing and testing—enables us to meet the high quality standards needed on aircraft materials.
Applications
- Aircraft, rockets and other segments of the aerospace field
Examples of large forging

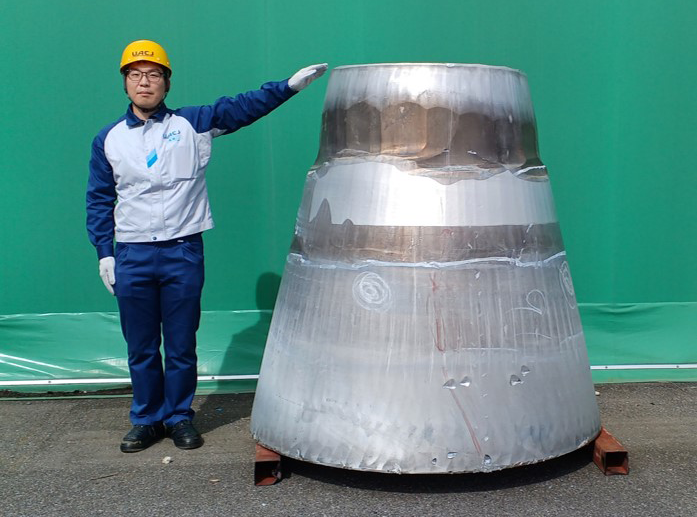

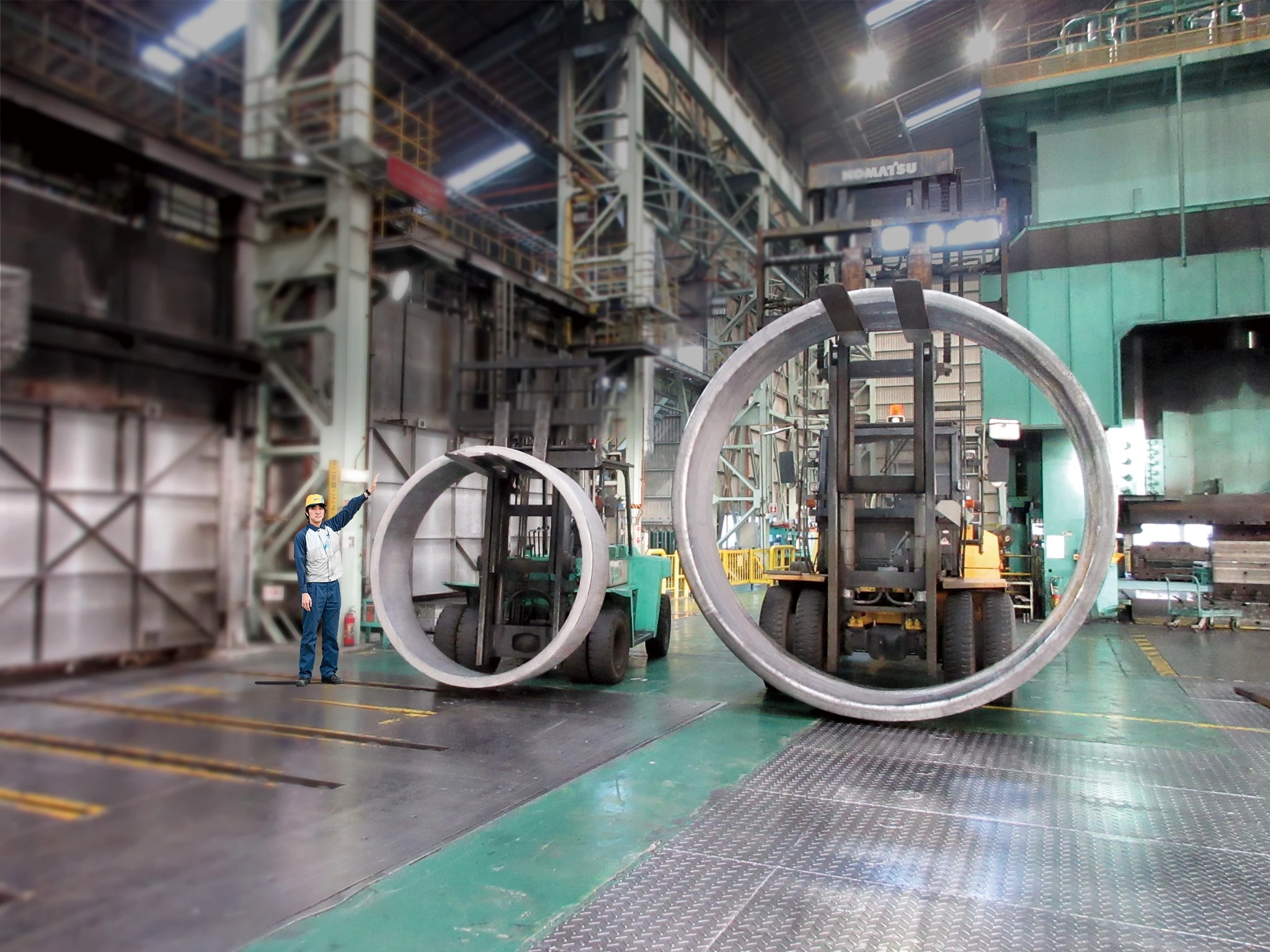

Large aluminum alloy forging are desired for their light weight, strength and high reliability. High-temperature, high-pressure forging is used to produce frames for aircraft fuselages and rings for rocket walls.
Examples of die forging products

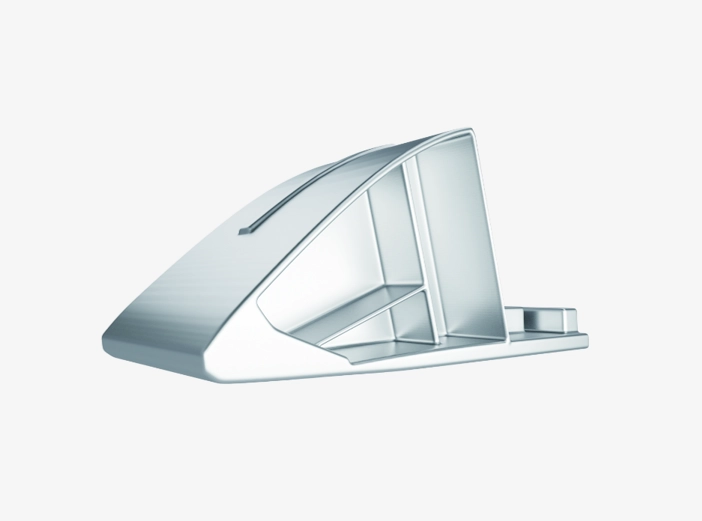

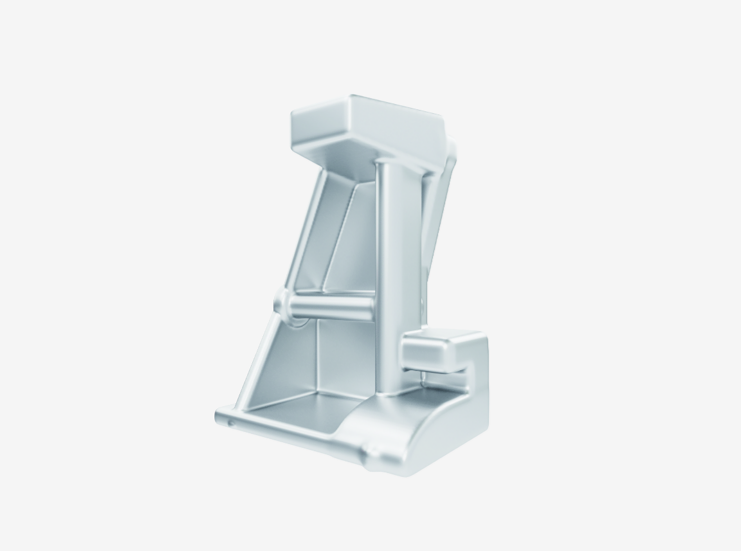

Die forging uses dies close to the final product shape. This method eliminates machining or reduces it to a minimum. Products show low variation in quality and dimensions—a key characteristic that suits the process for mass production.
Fabrication Ranges
Fabrication ranges of forged products for aerospace applications
| Forging methods | Type | Maximum dimensions mm (inch) | |
|---|---|---|---|
| Mold forging | Standard forgings | Width | 950 (37) <diameter: 1500 (59)> |
| Length | 4000 (157) <project area, plan view:9000 cm2 2 (1395 in2)> | ||
| Blocker type | Length | 4000 (157) <project area, plan view:1500 cm2 (232.5 in2)> | |
| Precision forgings | Width | 600(24) | |
| Length | 3000 (118) project area, plan view:3600 cm2 (558 in2) | ||
| Wall thickness | Minimum 1.4 mm (0.06) | ||
| Rearward extrusion forging | Diameter | 1000(39) | |
| Length | 1500(59) | ||
| Seamless forging | Diameter or width | 800(31) | |
| Free forging | Square materials | Width | 3500(138) |
| Length | 11000(433) | ||
| Rods | Diameter | 1500(59) | |
| Length | 11000(433) | ||
| Circular plate | Diameter | 4000(157) | |
| Rings | Diameter | 4000(157) | |
| Cylinders | Diameter | 2500(98) | |
| Length | 5000(197) | ||
Product Characteristics

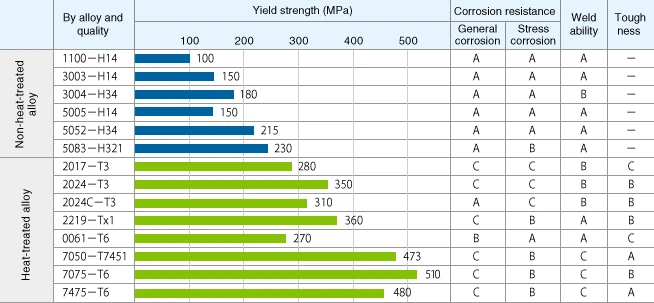

Comparison of characteristics with typical wrought aluminum
Production Facilities

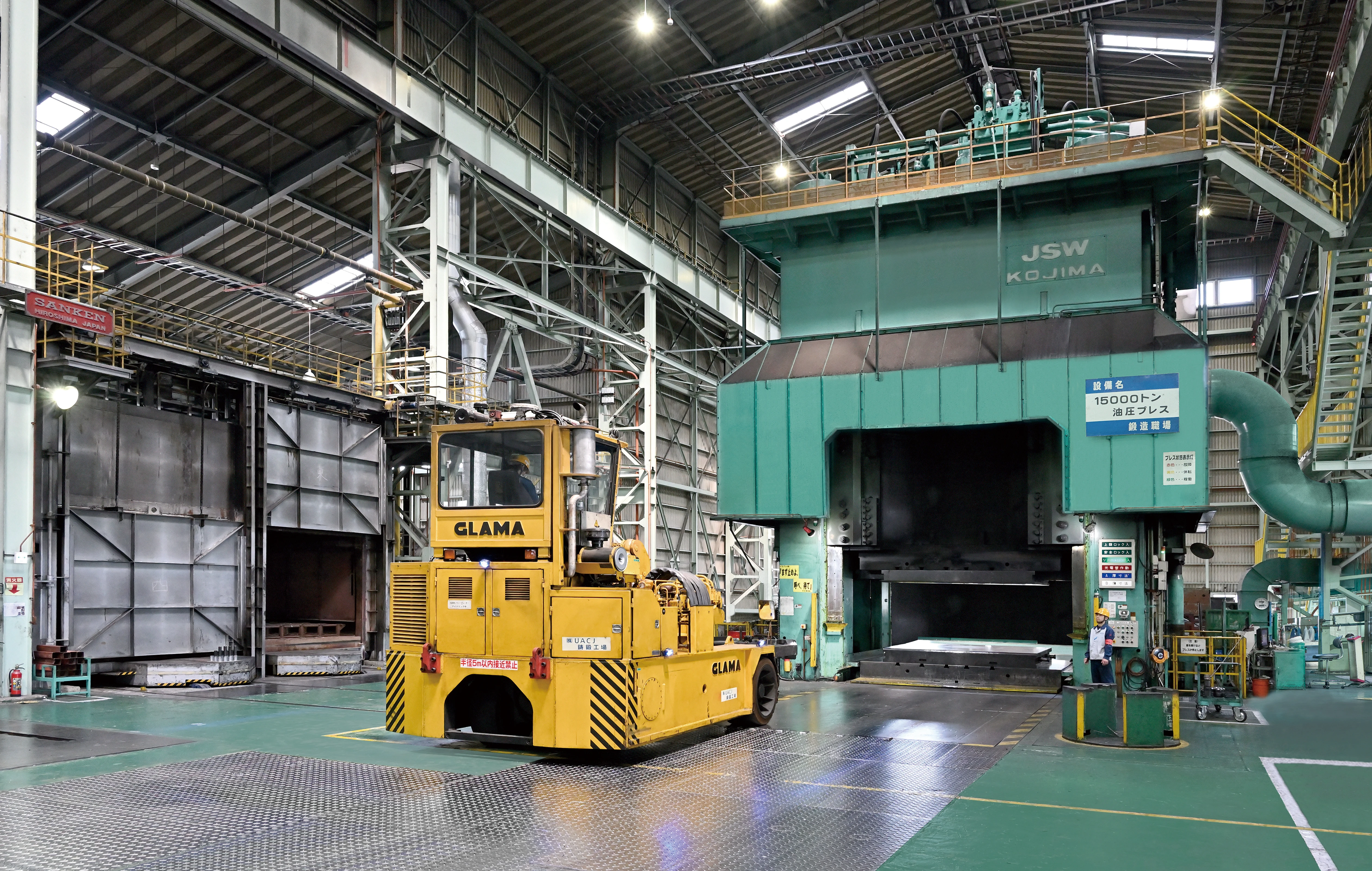

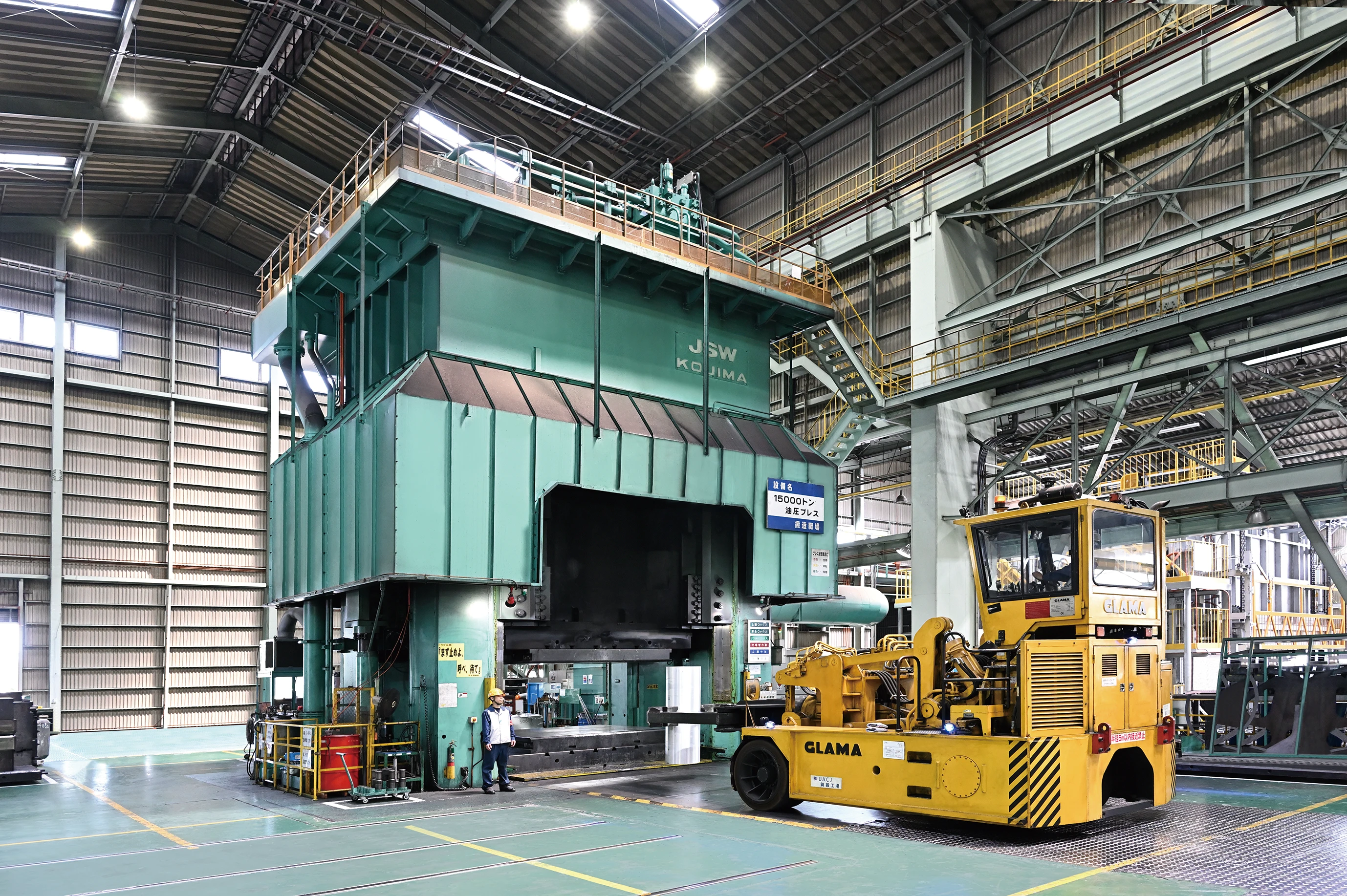

15,000-ton forging press
Using a 15,000-metric ton forging press, one of the largest of its kind in Asia, we manufacture large forgings weighing up to six tons.
Facility specification
| Height | It stands approximately 13 m above ground and occupies 8 m below ground. |
|---|---|
| Width | 8.5 m |
| Gate width | 4.5 m |
| Pressure | 2,000–15,000 tons (147MN) |
| Open height | 3,300 mm |
| Stroke | 2,500 mm |
| Table size | 4 m x 3 m |
| Pressurization speed | 1–21 mm/s (During pressurization at 15,000 tons) 1–63 mm/s (During pressurization at 5,000 tons) |
| Number of cylinders | 3 |
