High-conductivity Materials for Aluminum Busbars

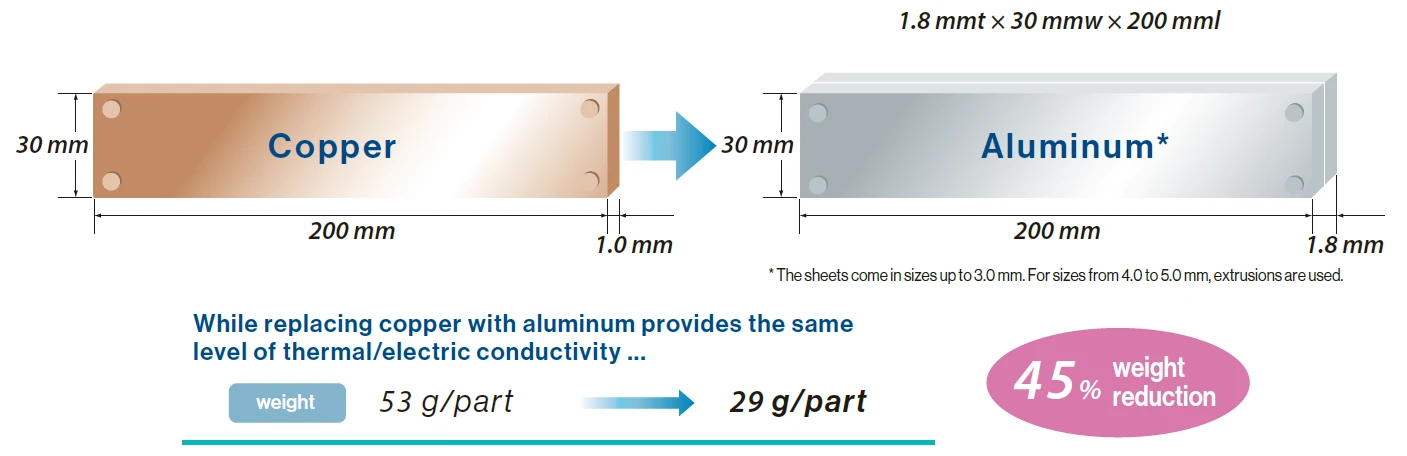

Replacing copper with aluminum drastically reduces weight and cost.

Features

Aluminum busbars weigh and cost far less than copper busbars.
The EC1 alloy exhibits the same high conductivity as pure 1050-O aluminum and 1.5 times its strength.
EC2 has only 55% of the conductivity of copper (lower specification limit) but exhibits the same level of conductivity when it is 1.8 times thicker.

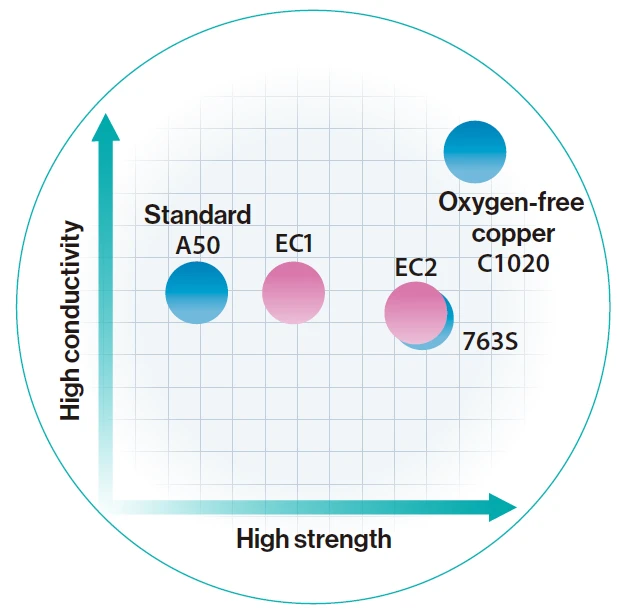

Alloy	JIS name	Temper	Tensile strength （N/mm²）	Proof stress （N/mm²）	Elongation （％）	Conductivity （％IACS）
EC1	1060	H18	130	125	6	61
EC1	1060	O	70	30	43	62
EC2	6101	T6	205	180	10	57
763S	6063	T6	215	190	18	54
A50	1050	O	85	40	46	61
C1020（copper）	－	O	240	200	47	100
