ALmitas+ MONOBRAZE(Filler-free brazing technology)
Share
Drastically enhancing recyclability and production eciency

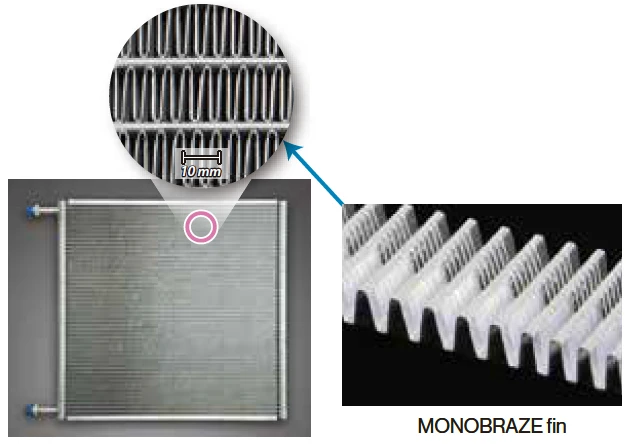

Features
- Single-layer material
The materials are easy to recycle as filler metal is not used. - Joining with filler metal
Possible to join metals in a similar way to the method using filler metal. - Similar technique to brazing
Conventional brazing facilities can be used for this technique. - Similar properties as clad materials
The mechanical properties and corrosion resistance are equal or surpass those of common clad materials.

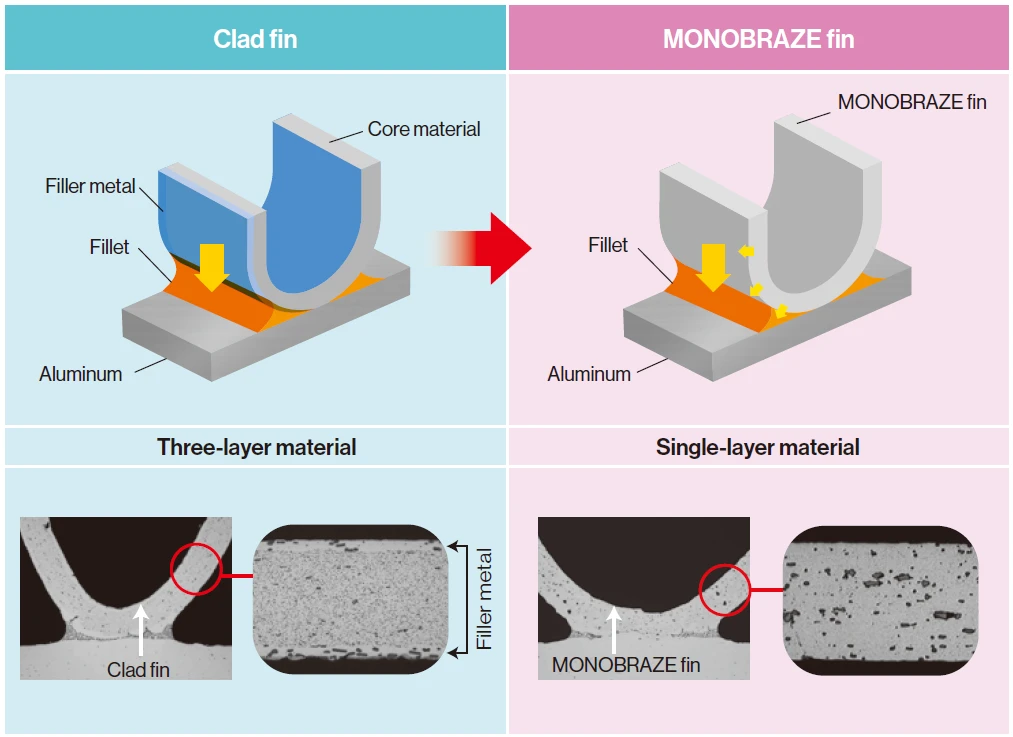

Comparison between MONOBRAZE fin and clad fin
- MONOBRAZE is a registered trademark of UACJ Corporation in Japan.

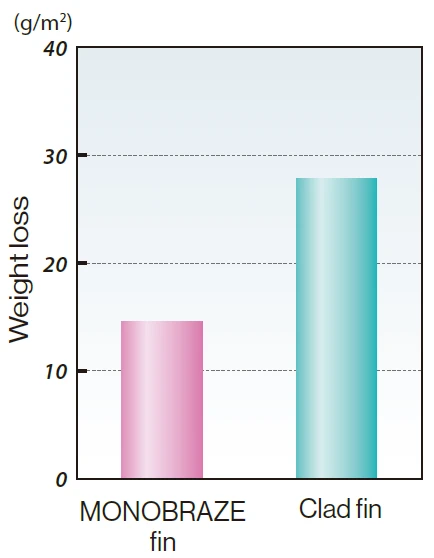

Mass loss after SWAAT (50h)
Characteristics
| Evaluation item | Brazed joint strength （MPa） |
Corrugated fin properties | Sagging （mm） |
Joining rate （％） |
Fillet width （mm） |
|---|---|---|---|---|---|
| MONOBRAZE t= 70 μm | 130 to 145 | Good | 25 to 35 | 100 | 0.5 to 0.6 |
| Clad fin t= 70 μm | 130 to 145 | Good | 25 to 35 | 100 | 0.5 to 0.6 |
| Bare aluminum（3003） t= 70 μm | 105 to 120 | Good | 15 to 25 | ー | ー |
- The above properties are
MONOBRAZE related patents
- Subject: Main patent number (JP)
- Material: 5337326, 5345264
- Joining method: 5629130
- Heat exchanger: 5698416
