Flat Rolled Products
Aluminum Checkered Plate
ShareFor railway rolling stock flooring and steps, etc.

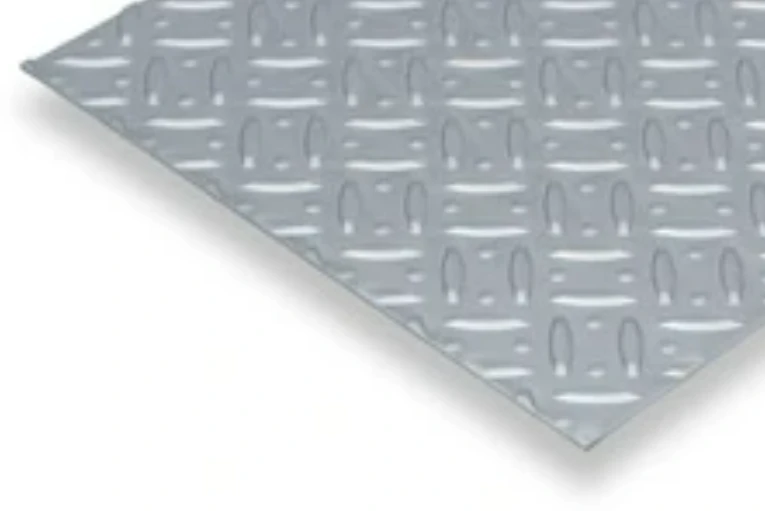

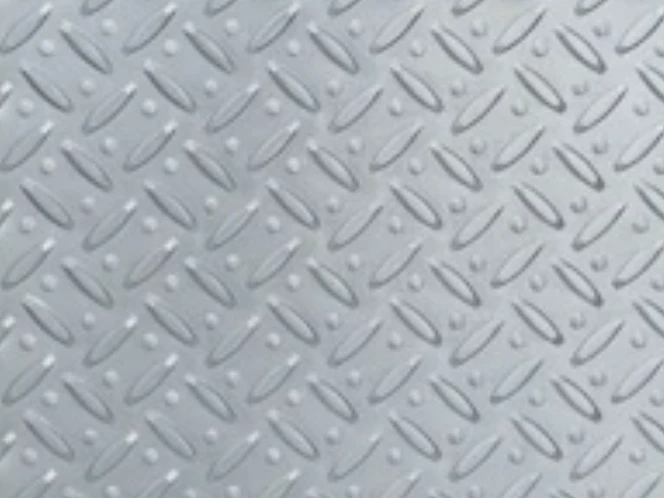

A beautiful, checkered aluminum plate with a distinctive decorative appeal. Its outstanding corrosion and seawater resistance make it ideally suited to use in railway rolling stock flooring and steps, etc.
Features
- Uniquely attractive checkered plate
- Excels in corrosion and salt-water resistance, and requires no painting or other maintenance
- Lightweight material that contributes to vehicle fuel efficiency
Applications
- Material for vehicle floors, steps, bumpers, etc.
Mechanical properties
5052-H112、5083-H112
| Material | Tensile strength（N/mm2） | Proof stress（N/mm2） | Elongation（％） |
|---|---|---|---|
| 5052-H112 | 195 | 110 | 9 |
| 5083-H112 | 285 | 285 | 11 |
- Figures are representative—not guaranteed—values.
5052
| Alloy | Sheet thickness （mm） |
Product sizes（mm） | ||
|---|---|---|---|---|
| 1000×2000 | 1219×2438 | 1525×3050 | ||
| 5052 | 2.0 | 12.1 | 18.0 | 28.2 |
| 2.5 | 14.8 | 22.0 | 34.4 | |
| 3.0 | 17.2 | 25.6 | 40.1 | |
| 3.5 | 20.1 | 29.9 | 46.8 | |
| 4.0 | 22.8 | 33.9 | 53.0 | |
| 4.5 | 25.2 | 37.5 | 58.7 | |
| 5.0 | 28.2 | 41.8 | 65.5 | |
| 5.5 | 30.8 | 45.8 | 71.7 | |
| 6.0 | 33.5 | 49.8 | 77.9 | |
