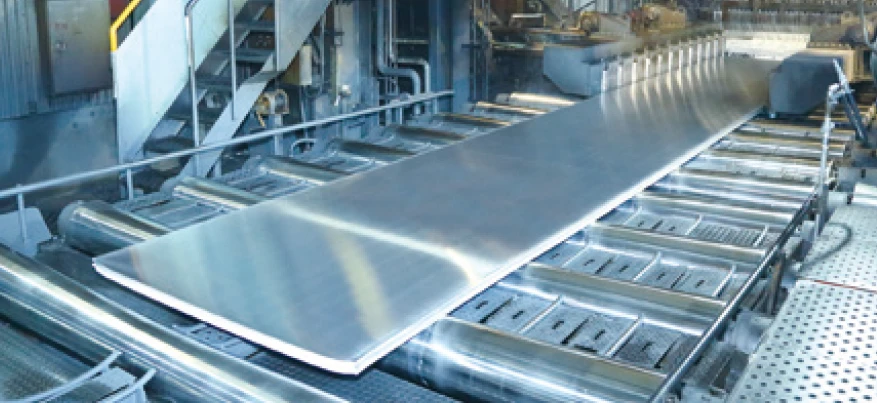

ALmitas+ FusPlate S (environmentally friendly thick plate)

This environmentally conscious, thick plate product utilizes recycled materials and contains no virgin aluminum ingot. It maintains conventional performance levels (improved thickness accuracy and flatness, reduced residual stress that lowers customer processing costs, etc.) while achieving lower environmental impact.

Aluminum smelting from raw materials to virgin ingot consumes a large amount of energy, whereas recycling dramatically reduces energy use. By fully leveraging this superior recycling property and using 100%^* recycled materials such as aluminum scrap in place of virgin ingot, this thick aluminum plate product greatly contributes to reducing environmental impact. We also adopt environmentally friendly protective film for packaging materials.

Calculated using the mass balance method, with verification (limited assurance) by a third party regarding the appropriateness of operations
This is a standard UACJ thick plate product for which the quality level is upgraded beyond ordinary thick plates (JIS standard A5052). (Alloy and temper: 5052-H112)

Features
Examples of use
Manufacturing size
Chemical composition
Thickness accuracy
Flatness
Mechanical properties
Inquiries about Products

Features

Thickness tolerance secured at 1/3 to 1/5 of JIS standard
Residual stress and flatness improved over ordinary thick plates
Reduced residual stress, achieving lower distortion during cutting and machining
Processing steps and distortion correction steps possible to be omitted, contributing to cost reduction
Surface protection film applied
Thickness range: 4 mm to 100 mm

Examples of use

Semiconductor manufacturing equipment
LCD manufacturing equipment
Electrical products
Medical equipment

Office automation equipment
Optical equipment
Various molds
Processing jigs

Manufacturing size

Unit: mm

Sheet thickness	Width × length
15 - 50	1,525×3,050

Chemical composition

Unit wt/%

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Individually	Total	Al
5052	0.25 or less	0.40 or less	0.10 or less	0.10 or less	2.2 - 2.8	0.15 - 0.35	0.10 or less	ー	0.05 or less	0.15 or less	Remaining

Thickness accuracy

Unit: mm

Sheet thickness	15	16～17	18～19	20～21	22	23～27	28～35	36～49	50
Tolerance	±0.15	±0.16	±0.18	±0.20	±0.22	±0.25	±0.30	±0.40	±0.50

Flatness

Unit: mm

Sheet thickness	Flatness
15 - 30	0.2 or less/1,000（width/length）
31 - 50	0.3 or less/1,000（width/length）

Mechanical properties (typical values)

Sheet thickness（mm）	Tensile strength （N/mm²）	Elongation（%）
15 - 50	209	27

Figures are representative
