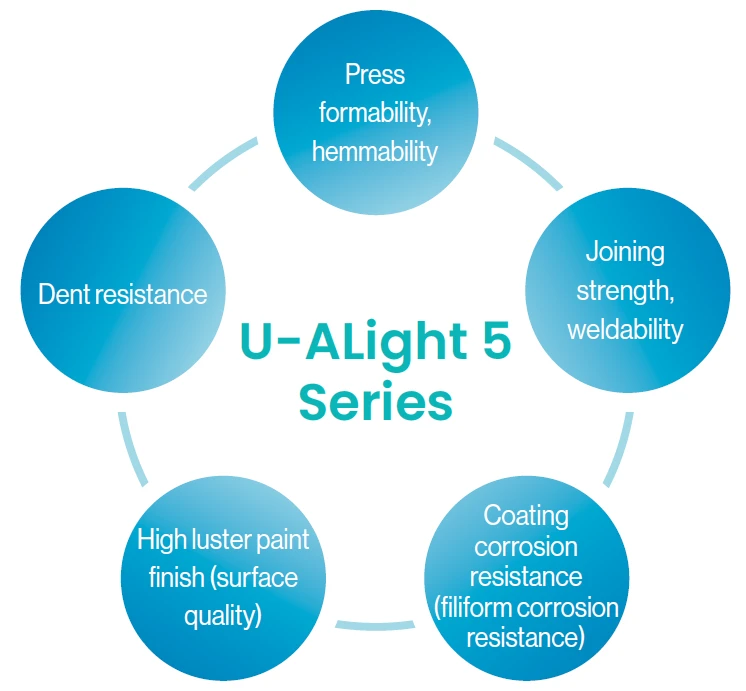

ALmitas+ U-ALight 5 Series (5000 Series Alloys)

5000 series alloy sheets for body panels, having strength comparable to cold-rolled steel and great formability

U-ALight is a new aluminum product series based on our conventional automotive products with the added benefit of lower environmental impact.

Features

5000 series aluminum alloys are widely used as they are the strongest non-heat-treatable alloys and also offer excellent formability.
5000 series aluminum alloys do not exhibit bake hardenability because they do not age-harden. However, their strength and formability do not change with natural aging.
U-ALight 5HF is an alloy for body panels, with Mg and Cu added to minimize softening during coat-baking.

(Sheet thickness: 1 mm)

Model	AA^*1designation	Tensile strength （N/mm²）	Proof stress （N/mm²）	Elongation （％）	n-value^*2	r-value
U-ALight 5S	5182	275	135	27	0.33	0.55
U-ALight 5HF	5022	280	130	28	0.31	0.7
52S	5052	195	90	25	0.26	0.7

(Sheet thickness: 1 mm)

Model	Formability	Hemmability	Corrosion resistance	Stretcher strain mark resistance
U-ALight 5S	◎	◎	○	△
U-ALight 5HF	◎＋	◎	○	○
52S	○	◎	○	△
